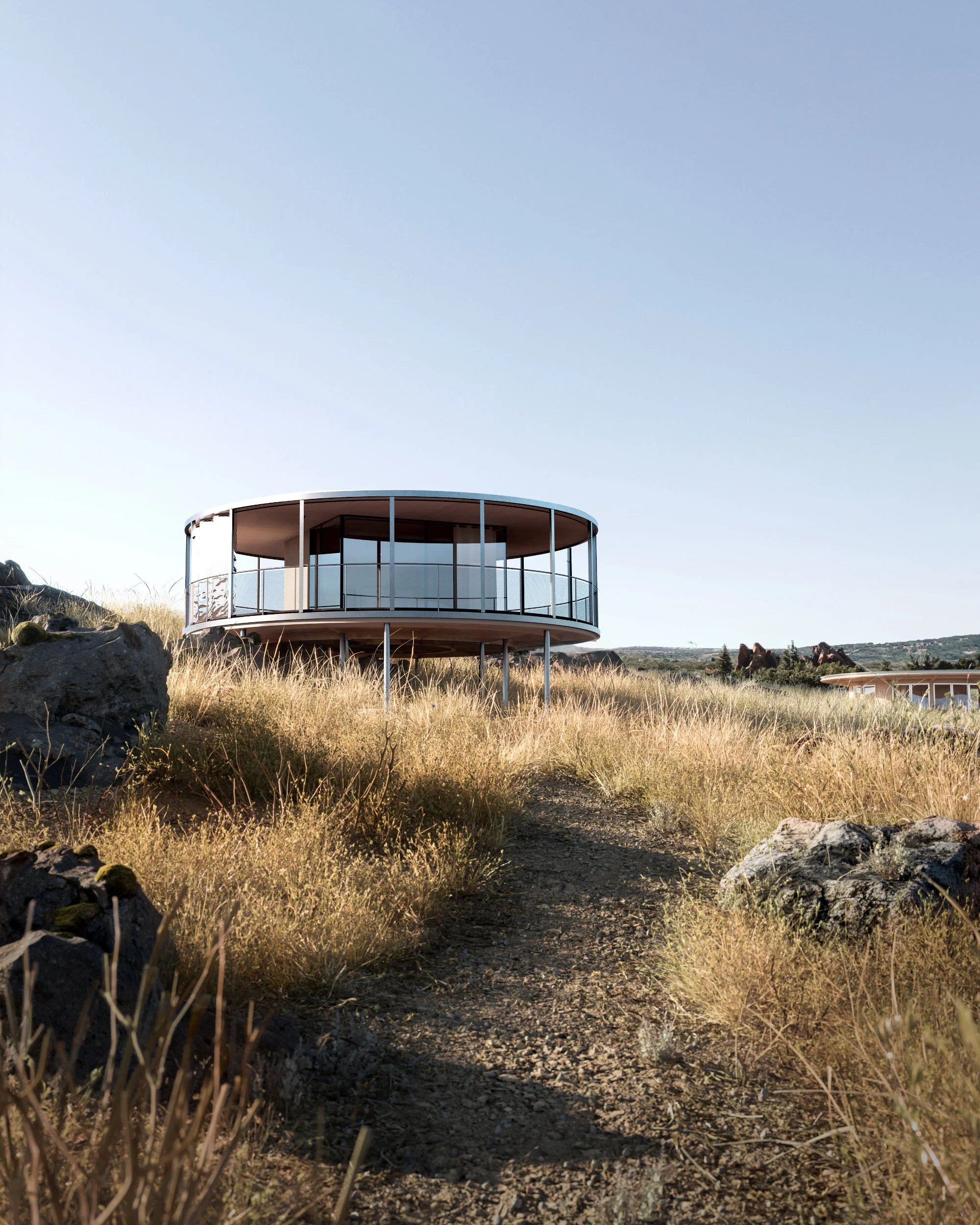

Echo

A minimal, high-performance modular unit built with only what’s essential.

Its design prioritizes efficiency, speed, and simplicity—using the least amount of material and construction to deliver the experience of a premium stay.

Purpose & Design Logic

Stripped back to what truly matters, ECHO delivers high-end comfort with minimal material and effort.

Specifications

Dimensions

  • Interior: 20 m²

  • Terrace: 65 m²

Primary Structure

  • Timber canopy structure

  • Insulated timber floor cassette with thermally activated screed

  • Timber roof cassette with sustainable insulation

  • Optional metal roof finish

Wall System

  • Timber cassettes with wood fibre insulation

  • External façade: Cementitious boards or optional aluminium panels

Openings & Glazing

  • Fixed glazing panels framed in natural brushed aluminium

  • Sliding door with aluminium frame and parallel sliding mechanism

  • Circular inward-opening aluminium bathroom window

Interior Finishes

  • Floor: Dark premium tiles (Saloni)

  • Internal walls: Pine veneer with dark chocolate varnish

  • Internal doors: MDF with matching dark veneer

Exterior Features

  • Composite decking terrace

  • Exposed CLT ceiling

  • Steel frame balustrade with timber handrail and textile net

Utilities

  • 150L hot water tank
